D2 ContainerDiagram Spec¶

Source: d2.container-diagram.json

This schema describes the ContainerDiagram spec for the D2 backend.

Properties¶

Properties

Field	Type	Description
`type(required)`	`string`	Type of the diagram. Must be exactly `ContainerDiagram`.
`title`	`string` \| `null`	Optional diagram title.
`elements`	`array[Element]`	Top-level elements.
`boundaries`	`array[Boundary]`	Top-level boundaries.
`relationships`	`array[D2RelationshipSchema]`	Top-level relationships.
`render_options`	`D2RenderOptionsSchema`	D2-specific render options.
`backend(required)`	`string`	JSON schema backend. Must be exactly `d2`.

Examples

MinimalAdvanced

JSON source

{
  "backend": "d2",
  "type": "ContainerDiagram",
  "title": "Web App",
  "elements": [
    {
      "type": "Person",
      "alias": "user",
      "label": "User"
    }
  ],
  "boundaries": [
    {
      "type": "SystemBoundary",
      "alias": "system",
      "label": "Simple System",
      "elements": [
        {
          "type": "Container",
          "alias": "web",
          "label": "Web App",
          "technology": "React"
        },
        {
          "type": "Container",
          "alias": "api",
          "label": "API",
          "technology": "Python"
        },
        {
          "type": "ContainerDb",
          "alias": "db",
          "label": "Database",
          "technology": "PostgreSQL"
        }
      ]
    }
  ],
  "relationships": [
    {
      "type": "REL",
      "from": "user",
      "to": "web",
      "label": "Uses"
    },
    {
      "type": "REL",
      "from": "web",
      "to": "api",
      "label": "Calls"
    },
    {
      "type": "REL",
      "from": "api",
      "to": "db",
      "label": "Reads/Writes"
    }
  ]
}

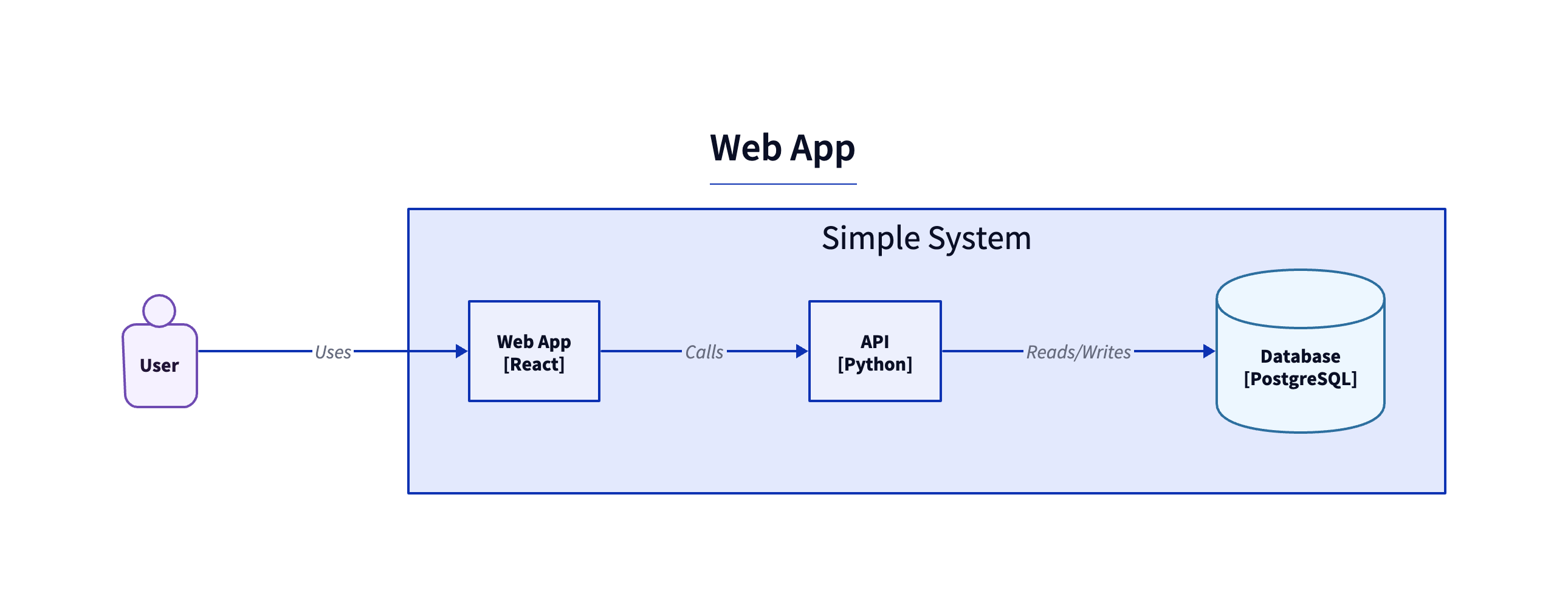

Rendered D2 source

direction: right
__title: ||md
  # Web App
|| {
  near: top-center
}
classes: {
  c4_person: {
    style.fill: "#f5f1ff"
    style.stroke: "#6f4bb2"
    style.font-color: "#211436"
  }
  c4_database: {
    style.fill: "#edf7ff"
    style.stroke: "#2d6f9f"
  }
}
user: {
  label: "User"
  shape: c4-person
  class: ["c4_person"]
}
system: {
  label: "Simple System"
  web: "Web App\n[React]"
  api: "API\n[Python]"
  db: {
    label: "Database\n[PostgreSQL]"
    shape: cylinder
    class: ["c4_database"]
  }
}
user -> system.web: "Uses"
system.web -> system.api: "Calls"
system.api -> system.db: "Reads/Writes"

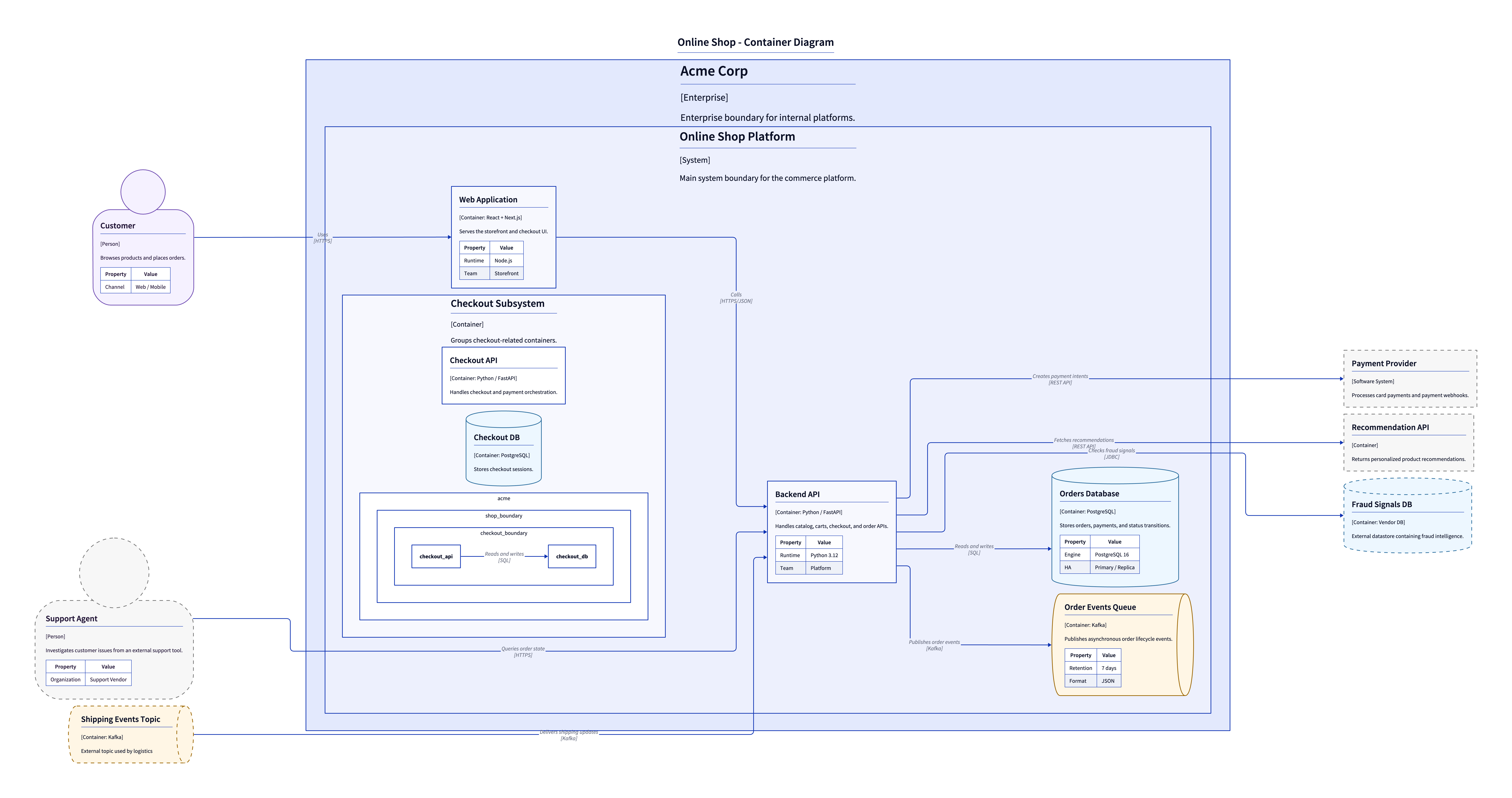

Rendered image

JSON source

{
  "backend": "d2",
  "type": "ContainerDiagram",
  "title": "Online Shop - Container Diagram",
  "elements": [
    {
      "type": "Person",
      "alias": "customer",
      "label": "Customer",
      "description": "Browses products and places orders.",
      "properties": {
        "properties": [
          [
            "Channel",
            "Web / Mobile"
          ]
        ]
      }
    },
    {
      "type": "PersonExt",
      "alias": "support_agent",
      "label": "Support Agent",
      "description": "Investigates customer issues from an external support tool.",
      "properties": {
        "properties": [
          [
            "Organization",
            "Support Vendor"
          ]
        ]
      }
    },
    {
      "type": "SystemExt",
      "alias": "payment_provider",
      "label": "Payment Provider",
      "description": "Processes card payments and payment webhooks."
    },
    {
      "type": "ContainerExt",
      "alias": "recommendation_api",
      "label": "Recommendation API",
      "description": "Returns personalized product recommendations."
    },
    {
      "type": "ContainerDbExt",
      "alias": "fraud_db",
      "label": "Fraud Signals DB",
      "description": "External datastore containing fraud intelligence.",
      "technology": "Vendor DB"
    },
    {
      "type": "ContainerQueueExt",
      "alias": "shipping_events",
      "label": "Shipping Events Topic",
      "description": "External topic used by logistics partner.",
      "technology": "Kafka"
    }
  ],
  "boundaries": [
    {
      "type": "EnterpriseBoundary",
      "alias": "acme",
      "label": "Acme Corp",
      "description": "Enterprise boundary for internal platforms.",
      "properties": {
        "properties": [
          [
            "Region",
            "EU"
          ],
          [
            "Business Unit",
            "Digital Commerce"
          ]
        ]
      },
      "boundaries": [
        {
          "type": "SystemBoundary",
          "alias": "shop_boundary",
          "label": "Online Shop Platform",
          "description": "Main system boundary for the commerce platform.",
          "properties": {
            "properties": [
              [
                "Owner",
                "Commerce Team"
              ],
              [
                "Environment",
                "Production"
              ]
            ]
          },
          "elements": [
            {
              "type": "Container",
              "alias": "web_app",
              "label": "Web Application",
              "description": "Serves the storefront and checkout UI.",
              "technology": "React + Next.js",
              "properties": {
                "properties": [
                  [
                    "Runtime",
                    "Node.js"
                  ],
                  [
                    "Team",
                    "Storefront"
                  ]
                ]
              }
            },
            {
              "type": "Container",
              "alias": "backend_api",
              "label": "Backend API",
              "description": "Handles catalog, carts, checkout, and order APIs.",
              "technology": "Python / FastAPI",
              "properties": {
                "properties": [
                  [
                    "Runtime",
                    "Python 3.12"
                  ],
                  [
                    "Team",
                    "Platform"
                  ]
                ]
              }
            },
            {
              "type": "ContainerDb",
              "alias": "orders_db",
              "label": "Orders Database",
              "description": "Stores orders, payments, and status transitions.",
              "technology": "PostgreSQL",
              "properties": {
                "properties": [
                  [
                    "Engine",
                    "PostgreSQL 16"
                  ],
                  [
                    "HA",
                    "Primary / Replica"
                  ]
                ]
              }
            },
            {
              "type": "ContainerQueue",
              "alias": "order_events",
              "label": "Order Events Queue",
              "description": "Publishes asynchronous order lifecycle events.",
              "technology": "Kafka",
              "properties": {
                "properties": [
                  [
                    "Retention",
                    "7 days"
                  ],
                  [
                    "Format",
                    "JSON"
                  ]
                ]
              }
            }
          ],
          "boundaries": [
            {
              "type": "ContainerBoundary",
              "alias": "checkout_boundary",
              "label": "Checkout Subsystem",
              "description": "Groups checkout-related containers.",
              "properties": {
                "properties": [
                  [
                    "Owner",
                    "Checkout Team"
                  ],
                  [
                    "Criticality",
                    "High"
                  ]
                ]
              },
              "elements": [
                {
                  "type": "Container",
                  "alias": "checkout_api",
                  "label": "Checkout API",
                  "description": "Handles checkout and payment orchestration.",
                  "technology": "Python / FastAPI"
                },
                {
                  "type": "ContainerDb",
                  "alias": "checkout_db",
                  "label": "Checkout DB",
                  "description": "Stores checkout sessions.",
                  "technology": "PostgreSQL"
                }
              ],
              "relationships": [
                {
                  "type": "REL",
                  "from": "checkout_api",
                  "to": "checkout_db",
                  "label": "Reads and writes",
                  "technology": "SQL"
                }
              ]
            }
          ]
        }
      ]
    }
  ],
  "relationships": [
    {
      "type": "REL",
      "from": "customer",
      "to": "web_app",
      "label": "Uses",
      "technology": "HTTPS"
    },
    {
      "type": "REL",
      "from": "web_app",
      "to": "backend_api",
      "label": "Calls",
      "technology": "HTTPS/JSON"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "orders_db",
      "label": "Reads and writes",
      "technology": "SQL"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "order_events",
      "label": "Publishes order events",
      "technology": "Kafka"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "payment_provider",
      "label": "Creates payment intents",
      "technology": "REST API"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "recommendation_api",
      "label": "Fetches recommendations",
      "technology": "REST API"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "fraud_db",
      "label": "Checks fraud signals",
      "technology": "JDBC"
    },
    {
      "type": "REL",
      "from": "shipping_events",
      "to": "backend_api",
      "label": "Delivers shipping updates",
      "technology": "Kafka"
    },
    {
      "type": "REL",
      "from": "support_agent",
      "to": "backend_api",
      "label": "Queries order state",
      "technology": "HTTPS"
    }
  ],
  "render_options": {
    "layout": "dagre",
    "include_properties": true,
    "bidirectional_relationships": "single_edge"
  }
}

Rendered D2 source

direction: right
__title: ||md
  # Online Shop - Container Diagram
|| {
  near: top-center
}
classes: {
  c4_person: {
    style.fill: "#f5f1ff"
    style.stroke: "#6f4bb2"
    style.font-color: "#211436"
  }
  c4_external: {
    style.fill: "#f7f7f7"
    style.stroke: "#767676"
    style.stroke-dash: "5"
  }
  c4_database: {
    style.fill: "#edf7ff"
    style.stroke: "#2d6f9f"
  }
  c4_queue: {
    style.fill: "#fff6e5"
    style.stroke: "#9b6500"
  }
}
customer: ||md
  ## Customer

  [Person]

  Browses products and places orders.

  | Property | Value |
  | --- | --- |
  | Channel | Web / Mobile |
|| {
  shape: c4-person
  class: ["c4_person"]
}
support_agent: ||md
  ## Support Agent

  [Person]

  Investigates customer issues from an external support tool.

  | Property | Value |
  | --- | --- |
  | Organization | Support Vendor |
|| {
  shape: c4-person
  class: ["c4_person"; "c4_external"]
}
payment_provider: ||md
  ## Payment Provider

  [Software System]

  Processes card payments and payment webhooks.
|| {
  shape: rectangle
  class: ["c4_external"]
}
recommendation_api: ||md
  ## Recommendation API

  [Container]

  Returns personalized product recommendations.
|| {
  shape: rectangle
  class: ["c4_external"]
}
fraud_db: ||md
  ## Fraud Signals DB

  [Container: Vendor DB]

  External datastore containing fraud intelligence.
|| {
  shape: cylinder
  class: ["c4_external"; "c4_database"]
}
shipping_events: ||md
  ## Shipping Events Topic

  [Container: Kafka]

  External topic used by logistics partner.
|| {
  shape: queue
  class: ["c4_external"; "c4_queue"]
}
acme: {
  label: ||md
    ## Acme Corp

    [Enterprise]

    Enterprise boundary for internal platforms.
  ||
  shape: rectangle
  shop_boundary: {
    label: ||md
      ## Online Shop Platform

      [System]

      Main system boundary for the commerce platform.
    ||
    shape: rectangle
    web_app: ||md
      ## Web Application

      [Container: React + Next.js]

      Serves the storefront and checkout UI.

      | Property | Value |
      | --- | --- |
      | Runtime | Node.js |
      | Team | Storefront |
    || {
      shape: rectangle
    }
    backend_api: ||md
      ## Backend API

      [Container: Python / FastAPI]

      Handles catalog, carts, checkout, and order APIs.

      | Property | Value |
      | --- | --- |
      | Runtime | Python 3.12 |
      | Team | Platform |
    || {
      shape: rectangle
    }
    orders_db: ||md
      ## Orders Database

      [Container: PostgreSQL]

      Stores orders, payments, and status transitions.

      | Property | Value |
      | --- | --- |
      | Engine | PostgreSQL 16 |
      | HA | Primary / Replica |
    || {
      shape: cylinder
      class: ["c4_database"]
    }
    order_events: ||md
      ## Order Events Queue

      [Container: Kafka]

      Publishes asynchronous order lifecycle events.

      | Property | Value |
      | --- | --- |
      | Retention | 7 days |
      | Format | JSON |
    || {
      shape: queue
      class: ["c4_queue"]
    }
    checkout_boundary: {
      label: ||md
        ## Checkout Subsystem

        [Container]

        Groups checkout-related containers.
      ||
      shape: rectangle
      checkout_api: ||md
        ## Checkout API

        [Container: Python / FastAPI]

        Handles checkout and payment orchestration.
      || {
        shape: rectangle
      }
      checkout_db: ||md
        ## Checkout DB

        [Container: PostgreSQL]

        Stores checkout sessions.
      || {
        shape: cylinder
        class: ["c4_database"]
      }
      acme.shop_boundary.checkout_boundary.checkout_api -> acme.shop_boundary.checkout_boundary.checkout_db: "Reads and writes\n[SQL]"
    }
  }
}
customer -> acme.shop_boundary.web_app: "Uses\n[HTTPS]"
acme.shop_boundary.web_app -> acme.shop_boundary.backend_api: "Calls\n[HTTPS/JSON]"
acme.shop_boundary.backend_api -> acme.shop_boundary.orders_db: "Reads and writes\n[SQL]"
acme.shop_boundary.backend_api -> acme.shop_boundary.order_events: "Publishes order events\n[Kafka]"
acme.shop_boundary.backend_api -> payment_provider: "Creates payment intents\n[REST API]"
acme.shop_boundary.backend_api -> recommendation_api: "Fetches recommendations\n[REST API]"
acme.shop_boundary.backend_api -> fraud_db: "Checks fraud signals\n[JDBC]"
shipping_events -> acme.shop_boundary.backend_api: "Delivers shipping updates\n[Kafka]"
support_agent -> acme.shop_boundary.backend_api: "Queries order state\n[HTTPS]"

Rendered image

Definitions¶

About labels and aliases

label is a display name for the element.

alias is a unique identifier used for referencing elements in relationships and layouts. If omitted, it is generated automatically.

You can also use label for referencing elements in relationships and layouts, but each label must be unique within the diagram.

D2ContainerBoundarySchema¶

D2 JSON schema for a container boundary.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerBoundary`.
`elements`	`array[Element]`	Elements may be nested arbitrarily.
`boundaries`	`array[Boundary]`	Boundaries may be nested arbitrarily.
`relationships`	`array[D2RelationshipSchema]`	Relationships declared inside the boundary.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerDbExtSchema¶

D2 JSON schema for an external database-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerDbExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerDbSchema¶

D2 JSON schema for a database-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerDb`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerEnterpriseBoundarySchema¶

D2 JSON schema for an enterprise boundary in container diagrams.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `EnterpriseBoundary`.
`elements`	`array[Element]`	Elements may be nested arbitrarily.
`boundaries`	`array[Boundary]`	Boundaries may be nested arbitrarily.
`relationships`	`array[D2RelationshipSchema]`	Relationships declared inside the boundary.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerExtSchema¶

D2 JSON schema for an external container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerGenericBoundarySchema¶

D2 JSON schema for a generic boundary in container diagrams.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Boundary`.
`elements`	`array[Element]`	Elements may be nested arbitrarily.
`boundaries`	`array[Boundary]`	Boundaries may be nested arbitrarily.
`relationships`	`array[D2RelationshipSchema]`	Relationships declared inside the boundary.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerQueueExtSchema¶

D2 JSON schema for an external queue-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerQueueExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerQueueSchema¶

D2 JSON schema for a queue-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerQueue`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerSchema¶

D2 JSON schema for a container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Container`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerSystemBoundarySchema¶

D2 JSON schema for a system boundary in a container diagram.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemBoundary`.
`elements`	`array[Element]`	Elements may be nested arbitrarily.
`boundaries`	`array[Boundary]`	Boundaries may be nested arbitrarily.
`relationships`	`array[D2RelationshipSchema]`	Relationships declared inside the boundary.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2PersonExtSchema¶

D2 JSON schema for an external person.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `PersonExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2PersonSchema¶

D2 JSON schema for a person.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Person`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2RelationshipSchema¶

JSON schema for relationships supported by D2 C4 diagrams.

Properties

Field	Type	Description
`type(required)`	`RelationshipType`	Type of the relationship.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Additional details about the relationship.
`from(required)`	`string`	The source element alias (or unique label).
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	The label shown on the relationship edge.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	The technology used in the communication.
`to(required)`	`string`	The destination element alias (or unique label).
`tooltip`	`string` \| `null`	Optional D2 tooltip.

RelationshipType¶

Relationship types supported by D2 C4 diagrams.

Items

Type	Description
`BI_REL`	A bidirectional relationship between two elements.
`REL`	A unidirectional relationship between two elements.

D2SystemDbExtSchema¶

D2 JSON schema for an external database-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemDbExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemDbSchema¶

D2 JSON schema for a database-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemDb`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemExtSchema¶

D2 JSON schema for an external software system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemQueueExtSchema¶

D2 JSON schema for an external queue-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemQueueExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemQueueSchema¶

D2 JSON schema for a queue-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemQueue`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemSchema¶

D2 JSON schema for a software system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `System`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

DiagramElementPropertiesSchema¶

JSON schema for tabular diagram element properties.

Properties

Field	Type	Description
`header`	`array[string]`	Header columns. Default: `["Property", "Value"]`.
`properties(required)`	`array[array[string]]`	List of rows (each row is a list of string values).
`show_header`	`boolean`	Whether to display the header row. Default: `true`.

D2 Render Options¶

D2RenderOptionsSchema¶

Render options for the D2 renderer.

Properties

Field	Type	Description
`auto_number_relationships`	`boolean`	Auto Number Relationships Default: `false`.
`bidirectional_relationships`	`enum[two_edges \| single_edge]`	Bidirectional Relationships Default: `two_edges`.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Direction Default: `right`.
`fully_qualified_relationships`	`boolean`	Fully Qualified Relationships Default: `true`.
`include_properties`	`boolean`	Include Properties Default: `false`.
`include_technology`	`boolean`	Include Technology Default: `true`.
`include_type_label`	`boolean`	Include Type Label Default: `true`.
`layout`	`enum[dagre \| elk]`	Layout Default: `dagre`.
`legend`	`D2LegendSchema`
`sequence_diagram`	`boolean`	Sequence Diagram Default: `false`.
`theme`	`integer` \| `null`	Theme
`title_near`	`enum[top-left \| top-center \| top-right \| center-left \| center-right \| bottom-left \| bottom-center \| bottom-right]` \| `null`	Title Near Default: `top-center`.

D2StyleSchema¶

D2 style attributes used by D2 render options.

Properties

Field	Type	Description
`animated`	`boolean` \| `null`	Animated
`bold`	`boolean` \| `null`	Bold
`border_radius`	`integer` \| `null`	Border Radius
`double_border`	`boolean` \| `null`	Double Border
`fill`	`string` \| `null`	Fill
`fill_pattern`	`string` \| `null`	Fill Pattern
`font`	`string` \| `null`	Font
`font_color`	`string` \| `null`	Font Color
`font_size`	`integer` \| `null`	Font Size
`italic`	`boolean` \| `null`	Italic
`multiple`	`boolean` \| `null`	Multiple
`opacity`	`number` \| `null`	Opacity
`shadow`	`boolean` \| `null`	Shadow
`stroke`	`string` \| `null`	Stroke
`stroke_dash`	`integer` \| `null`	Stroke Dash
`stroke_width`	`integer` \| `null`	Stroke Width
`text_transform`	`string` \| `null`	Text Transform
`three_d`	`boolean` \| `null`	Three D
`underline`	`boolean` \| `null`	Underline

D2LegendSchema¶

Structured D2 legend render options.

Properties

Field	Type	Description
`items`	`array[D2LegendElementSchema\|D2LegendRelSchema]`	Items
`label`	`string`	Label Default: `Legend`.

D2LegendElementSchema¶

Schema for a D2 legend node sample.

Properties

Field	Type	Description
`type(required)`	`string`	Legend item discriminator. Must be exactly `element`.
`alias`	`string` \| `null`	Optional D2 identifier.
`classes`	`array[string]`	Classes
`icon`	`string` \| `null`	Icon
`label(required)`	`string`	Legend item label.
`shape`	`string` \| `null`	Shape
`style`	`D2StyleSchema`

D2LegendRelSchema¶

Schema for a D2 legend relationship sample.

Properties

Field	Type	Description
`type(required)`	`string`	Legend item discriminator. Must be exactly `relationship`.
`alias`	`string` \| `null`	Optional D2 identifier.
`bidirectional`	`boolean`	Bidirectional Default: `false`.
`classes`	`array[string]`	Classes
`hide_endpoints`	`boolean` \| `null`	Hide Endpoints
`label(required)`	`string`	Legend item label.
`source`	`string` \| `null`	Source
`style`	`D2StyleSchema`
`target`	`string` \| `null`	Target

D2 ContainerDiagram Spec¶

Properties¶

Elements¶

Boundaries¶

Relationships¶

Definitions¶

D2ContainerBoundarySchema¶

D2ContainerDbExtSchema¶

D2ContainerDbSchema¶

D2ContainerEnterpriseBoundarySchema¶

D2ContainerExtSchema¶

D2ContainerGenericBoundarySchema¶

D2ContainerQueueExtSchema¶

D2ContainerQueueSchema¶

D2ContainerSchema¶

D2ContainerSystemBoundarySchema¶

D2PersonExtSchema¶

D2PersonSchema¶

D2RelationshipSchema¶

RelationshipType¶

D2SystemDbExtSchema¶

D2SystemDbSchema¶

D2SystemExtSchema¶

D2SystemQueueExtSchema¶

D2SystemQueueSchema¶

D2SystemSchema¶

DiagramElementPropertiesSchema¶

D2 Render Options¶

D2RenderOptionsSchema¶

D2StyleSchema¶

D2LegendSchema¶

D2LegendElementSchema¶

D2LegendRelSchema¶
