D2 DeploymentDiagram Spec¶

Source: d2.deployment-diagram.json

This schema describes the DeploymentDiagram spec for the D2 backend.

Properties¶

Properties

Field	Type	Description
`type(required)`	`string`	Type of the diagram. Must be exactly `DeploymentDiagram`.
`title`	`string` \| `null`	Optional diagram title.
`elements`	`array[Element]`	Top-level elements.
`boundaries`	`array[Boundary]`	Top-level boundaries.
`relationships`	`array[D2RelationshipSchema]`	Top-level relationships.
`render_options`	`D2RenderOptionsSchema`	D2-specific render options.
`backend(required)`	`string`	JSON schema backend. Must be exactly `d2`.

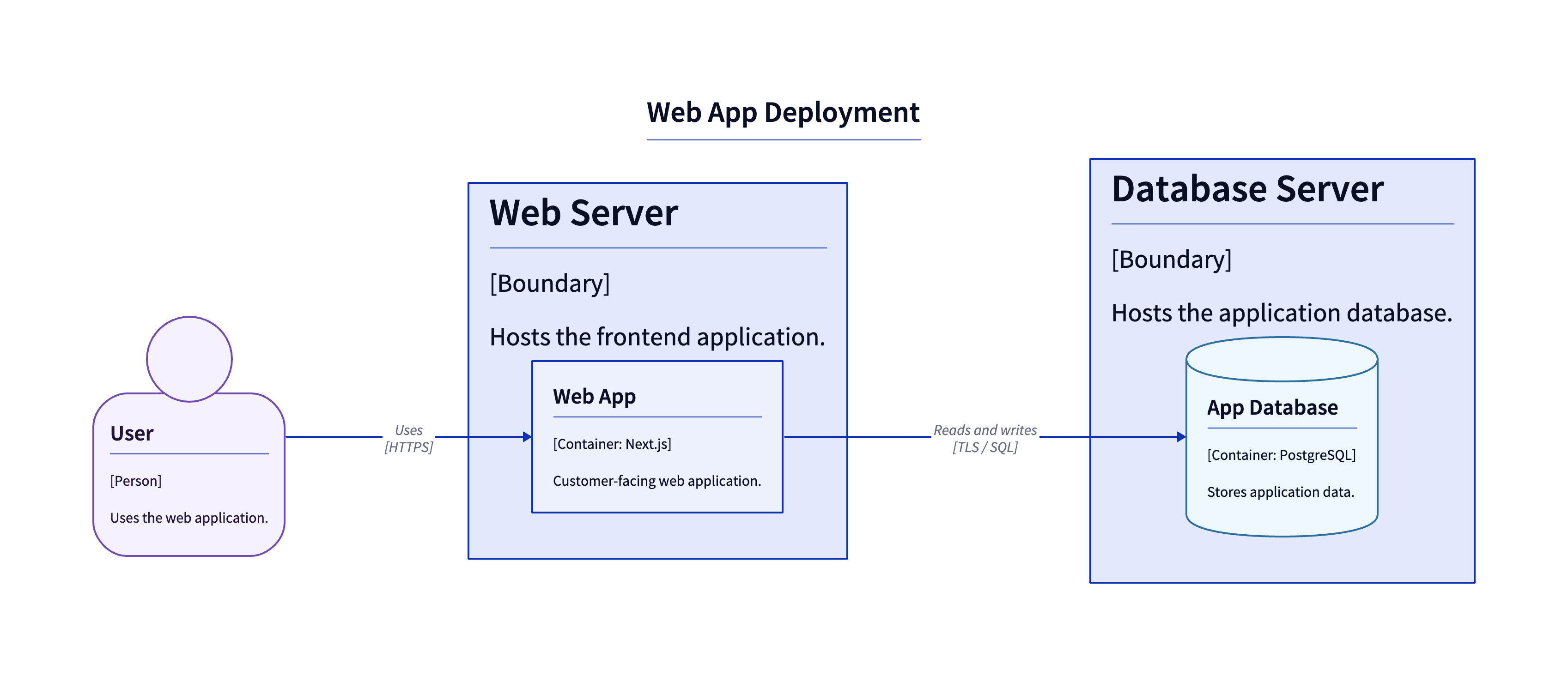

Examples

MinimalAdvanced

JSON source

{
  "backend": "d2",
  "type": "DeploymentDiagram",
  "title": "Web App Deployment",
  "elements": [
    {
      "type": "Person",
      "alias": "user",
      "label": "User",
      "description": "Uses the web application."
    }
  ],
  "boundaries": [
    {
      "type": "DeploymentNode",
      "alias": "web_node",
      "label": "Web Server",
      "description": "Hosts the frontend application.",
      "elements": [
        {
          "type": "Container",
          "alias": "web_app",
          "label": "Web App",
          "description": "Customer-facing web application.",
          "technology": "Next.js"
        }
      ]
    },
    {
      "type": "DeploymentNode",
      "alias": "db_node",
      "label": "Database Server",
      "description": "Hosts the application database.",
      "elements": [
        {
          "type": "ContainerDb",
          "alias": "app_db",
          "label": "App Database",
          "description": "Stores application data.",
          "technology": "PostgreSQL"
        }
      ]
    }
  ],
  "relationships": [
    {
      "type": "REL",
      "from": "user",
      "to": "web_app",
      "label": "Uses",
      "technology": "HTTPS"
    },
    {
      "type": "REL",
      "from": "web_app",
      "to": "app_db",
      "label": "Reads and writes",
      "technology": "TLS / SQL"
    }
  ]
}

Rendered D2 source

direction: right
__title: ||md
  # Web App Deployment
|| {
  near: top-center
}
classes: {
  c4_person: {
    style.fill: "#f5f1ff"
    style.stroke: "#6f4bb2"
    style.font-color: "#211436"
  }
  c4_database: {
    style.fill: "#edf7ff"
    style.stroke: "#2d6f9f"
  }
}
user: ||md
  ## User

  [Person]

  Uses the web application.
|| {
  shape: c4-person
  class: ["c4_person"]
}
web_node: {
  label: ||md
    ## Web Server

    [Boundary]

    Hosts the frontend application.
  ||
  shape: rectangle
  web_app: ||md
    ## Web App

    [Container: Next.js]

    Customer-facing web application.
  || {
    shape: rectangle
  }
}
db_node: {
  label: ||md
    ## Database Server

    [Boundary]

    Hosts the application database.
  ||
  shape: rectangle
  app_db: ||md
    ## App Database

    [Container: PostgreSQL]

    Stores application data.
  || {
    shape: cylinder
    class: ["c4_database"]
  }
}
user -> web_node.web_app: "Uses\n[HTTPS]"
web_node.web_app -> db_node.app_db: "Reads and writes\n[TLS / SQL]"

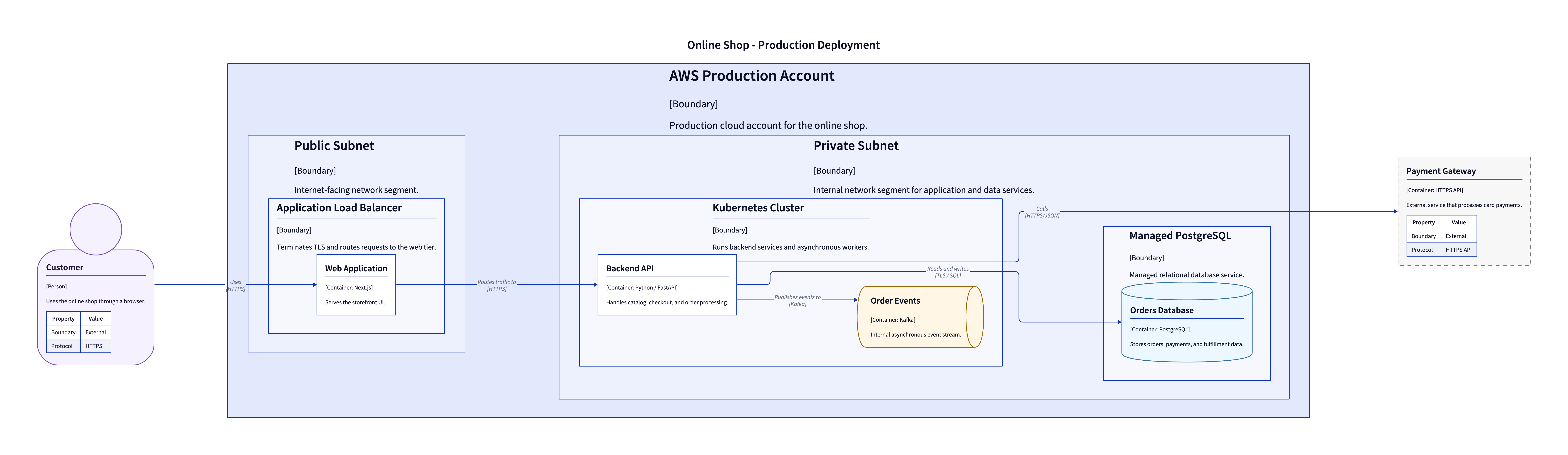

Rendered image

JSON source

{
  "backend": "d2",
  "type": "DeploymentDiagram",
  "title": "Online Shop - Production Deployment",
  "elements": [
    {
      "type": "Person",
      "alias": "customer",
      "label": "Customer",
      "description": "Uses the online shop through a browser.",
      "properties": {
        "properties": [
          [
            "Boundary",
            "External"
          ],
          [
            "Protocol",
            "HTTPS"
          ]
        ]
      }
    },
    {
      "type": "ContainerExt",
      "alias": "payment_gateway",
      "label": "Payment Gateway",
      "description": "External service that processes card payments.",
      "technology": "HTTPS API",
      "properties": {
        "properties": [
          [
            "Boundary",
            "External"
          ],
          [
            "Protocol",
            "HTTPS API"
          ]
        ]
      }
    }
  ],
  "boundaries": [
    {
      "type": "Node",
      "alias": "aws_prod",
      "label": "AWS Production Account",
      "description": "Production cloud account for the online shop.",
      "properties": {
        "properties": [
          [
            "Environment",
            "Production"
          ],
          [
            "Region",
            "eu-central-1"
          ]
        ]
      },
      "boundaries": [
        {
          "type": "Node",
          "alias": "public_subnet",
          "label": "Public Subnet",
          "description": "Internet-facing network segment.",
          "boundaries": [
            {
              "type": "DeploymentNode",
              "alias": "alb",
              "label": "Application Load Balancer",
              "description": "Terminates TLS and routes requests to the web tier.",
              "elements": [
                {
                  "type": "Container",
                  "alias": "web_app",
                  "label": "Web Application",
                  "description": "Serves the storefront UI.",
                  "technology": "Next.js"
                }
              ]
            }
          ]
        },
        {
          "type": "Node",
          "alias": "private_subnet",
          "label": "Private Subnet",
          "description": "Internal network segment for application and data services.",
          "boundaries": [
            {
              "type": "DeploymentNode",
              "alias": "app_cluster",
              "label": "Kubernetes Cluster",
              "description": "Runs backend services and asynchronous workers.",
              "properties": {
                "properties": [
                  [
                    "Platform",
                    "EKS"
                  ],
                  [
                    "Autoscaling",
                    "Enabled"
                  ]
                ]
              },
              "elements": [
                {
                  "type": "Container",
                  "alias": "backend_api",
                  "label": "Backend API",
                  "description": "Handles catalog, checkout, and order processing.",
                  "technology": "Python / FastAPI"
                },
                {
                  "type": "ContainerQueue",
                  "alias": "order_events",
                  "label": "Order Events",
                  "description": "Internal asynchronous event stream.",
                  "technology": "Kafka"
                }
              ]
            },
            {
              "type": "DeploymentNode",
              "alias": "db_service",
              "label": "Managed PostgreSQL",
              "description": "Managed relational database service.",
              "properties": {
                "properties": [
                  [
                    "Service",
                    "RDS"
                  ],
                  [
                    "Mode",
                    "Multi-AZ"
                  ]
                ]
              },
              "elements": [
                {
                  "type": "ContainerDb",
                  "alias": "orders_db",
                  "label": "Orders Database",
                  "description": "Stores orders, payments, and fulfillment data.",
                  "technology": "PostgreSQL"
                }
              ]
            }
          ]
        }
      ]
    }
  ],
  "relationships": [
    {
      "type": "REL",
      "from": "customer",
      "to": "web_app",
      "label": "Uses",
      "technology": "HTTPS"
    },
    {
      "type": "REL",
      "from": "web_app",
      "to": "backend_api",
      "label": "Routes traffic to",
      "technology": "HTTPS"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "orders_db",
      "label": "Reads and writes",
      "technology": "TLS / SQL"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "payment_gateway",
      "label": "Calls",
      "technology": "HTTPS/JSON"
    },
    {
      "type": "REL",
      "from": "backend_api",
      "to": "order_events",
      "label": "Publishes events to",
      "technology": "Kafka"
    }
  ],
  "render_options": {
    "layout": "dagre",
    "include_properties": true,
    "bidirectional_relationships": "single_edge"
  }
}

Rendered D2 source

direction: right
__title: ||md
  # Online Shop - Production Deployment
|| {
  near: top-center
}
classes: {
  c4_person: {
    style.fill: "#f5f1ff"
    style.stroke: "#6f4bb2"
    style.font-color: "#211436"
  }
  c4_external: {
    style.fill: "#f7f7f7"
    style.stroke: "#767676"
    style.stroke-dash: "5"
  }
  c4_database: {
    style.fill: "#edf7ff"
    style.stroke: "#2d6f9f"
  }
  c4_queue: {
    style.fill: "#fff6e5"
    style.stroke: "#9b6500"
  }
}
customer: ||md
  ## Customer

  [Person]

  Uses the online shop through a browser.

  | Property | Value |
  | --- | --- |
  | Boundary | External |
  | Protocol | HTTPS |
|| {
  shape: c4-person
  class: ["c4_person"]
}
payment_gateway: ||md
  ## Payment Gateway

  [Container: HTTPS API]

  External service that processes card payments.

  | Property | Value |
  | --- | --- |
  | Boundary | External |
  | Protocol | HTTPS API |
|| {
  shape: rectangle
  class: ["c4_external"]
}
aws_prod: {
  label: ||md
    ## AWS Production Account

    [Boundary]

    Production cloud account for the online shop.
  ||
  shape: rectangle
  public_subnet: {
    label: ||md
      ## Public Subnet

      [Boundary]

      Internet-facing network segment.
    ||
    shape: rectangle
    alb: {
      label: ||md
        ## Application Load Balancer

        [Boundary]

        Terminates TLS and routes requests to the web tier.
      ||
      shape: rectangle
      web_app: ||md
        ## Web Application

        [Container: Next.js]

        Serves the storefront UI.
      || {
        shape: rectangle
      }
    }
  }
  private_subnet: {
    label: ||md
      ## Private Subnet

      [Boundary]

      Internal network segment for application and data services.
    ||
    shape: rectangle
    app_cluster: {
      label: ||md
        ## Kubernetes Cluster

        [Boundary]

        Runs backend services and asynchronous workers.
      ||
      shape: rectangle
      backend_api: ||md
        ## Backend API

        [Container: Python / FastAPI]

        Handles catalog, checkout, and order processing.
      || {
        shape: rectangle
      }
      order_events: ||md
        ## Order Events

        [Container: Kafka]

        Internal asynchronous event stream.
      || {
        shape: queue
        class: ["c4_queue"]
      }
    }
    db_service: {
      label: ||md
        ## Managed PostgreSQL

        [Boundary]

        Managed relational database service.
      ||
      shape: rectangle
      orders_db: ||md
        ## Orders Database

        [Container: PostgreSQL]

        Stores orders, payments, and fulfillment data.
      || {
        shape: cylinder
        class: ["c4_database"]
      }
    }
  }
}
customer -> aws_prod.public_subnet.alb.web_app: "Uses\n[HTTPS]"
aws_prod.public_subnet.alb.web_app -> aws_prod.private_subnet.app_cluster.backend_api: "Routes traffic to\n[HTTPS]"
aws_prod.private_subnet.app_cluster.backend_api -> aws_prod.private_subnet.db_service.orders_db: "Reads and writes\n[TLS / SQL]"
aws_prod.private_subnet.app_cluster.backend_api -> payment_gateway: "Calls\n[HTTPS/JSON]"
aws_prod.private_subnet.app_cluster.backend_api -> aws_prod.private_subnet.app_cluster.order_events: "Publishes events to\n[Kafka]"

Rendered image

Definitions¶

About labels and aliases

label is a display name for the element.

alias is a unique identifier used for referencing elements in relationships and layouts. If omitted, it is generated automatically.

You can also use label for referencing elements in relationships and layouts, but each label must be unique within the diagram.

D2ContainerDbExtSchema¶

D2 JSON schema for an external database-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerDbExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerDbSchema¶

D2 JSON schema for a database-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerDb`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerExtSchema¶

D2 JSON schema for an external container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerQueueExtSchema¶

D2 JSON schema for an external queue-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerQueueExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerQueueSchema¶

D2 JSON schema for a queue-like container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `ContainerQueue`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2ContainerSchema¶

D2 JSON schema for a container.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Container`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	Optional technology.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2DeploymentNodeSchema¶

D2 JSON schema for a deployment-specific node.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `DeploymentNode`.
`elements`	`array[Element]`	Top-level elements.
`boundaries`	`array[Boundary]`	Top-level boundaries.
`relationships`	`array[D2RelationshipSchema]`	Top-level relationships.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2NodeSchema¶

D2 JSON schema for a deployment node.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Node`.
`elements`	`array[Element]`	Top-level elements.
`boundaries`	`array[Boundary]`	Top-level boundaries.
`relationships`	`array[D2RelationshipSchema]`	Top-level relationships.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2PersonExtSchema¶

D2 JSON schema for an external person.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `PersonExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2PersonSchema¶

D2 JSON schema for a person.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `Person`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2RelationshipSchema¶

JSON schema for relationships supported by D2 C4 diagrams.

Properties

Field	Type	Description
`type(required)`	`RelationshipType`	Type of the relationship.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Additional details about the relationship.
`from(required)`	`string`	The source element alias (or unique label).
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	The label shown on the relationship edge.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`technology`	`string` \| `null`	The technology used in the communication.
`to(required)`	`string`	The destination element alias (or unique label).
`tooltip`	`string` \| `null`	Optional D2 tooltip.

RelationshipType¶

Relationship types supported by D2 C4 diagrams.

Items

Type	Description
`BI_REL`	A bidirectional relationship between two elements.
`REL`	A unidirectional relationship between two elements.

D2SystemDbExtSchema¶

D2 JSON schema for an external database-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemDbExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemDbSchema¶

D2 JSON schema for a database-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemDb`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemExtSchema¶

D2 JSON schema for an external software system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemQueueExtSchema¶

D2 JSON schema for an external queue-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemQueueExt`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemQueueSchema¶

D2 JSON schema for a queue-like system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `SystemQueue`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

D2SystemSchema¶

D2 JSON schema for a software system.

Properties

Field	Type	Description
`type(required)`	`string`	Discriminator identifying the element type. Must be exactly `System`.
`alias`	`string` \| `null`	Unique identifier for the element. If not provided, it is autogenerated from the label.
`classes`	`array[string]`	Optional D2 classes.
`description`	`string` \| `null`	Optional description text.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Optional D2 layout direction for a container.
`icon`	`string` \| `null`	Optional D2 icon URL.
`label(required)`	`string`	Display name for the element.
`link`	`string` \| `null`	Optional D2 link URL.
`near`	`string` \| `null`	Optional D2 near reference.
`properties`	`DiagramElementPropertiesSchema`	Optional property table metadata.
`shape`	`string` \| `null`	Optional D2 shape.
`style`	`D2StyleSchema`	Optional D2 style attributes.
`tooltip`	`string` \| `null`	Optional D2 tooltip.

DiagramElementPropertiesSchema¶

JSON schema for tabular diagram element properties.

Properties

Field	Type	Description
`header`	`array[string]`	Header columns. Default: `["Property", "Value"]`.
`properties(required)`	`array[array[string]]`	List of rows (each row is a list of string values).
`show_header`	`boolean`	Whether to display the header row. Default: `true`.

D2 Render Options¶

D2RenderOptionsSchema¶

Render options for the D2 renderer.

Properties

Field	Type	Description
`auto_number_relationships`	`boolean`	Auto Number Relationships Default: `false`.
`bidirectional_relationships`	`enum[two_edges \| single_edge]`	Bidirectional Relationships Default: `two_edges`.
`direction`	`enum[up \| down \| left \| right]` \| `null`	Direction Default: `right`.
`fully_qualified_relationships`	`boolean`	Fully Qualified Relationships Default: `true`.
`include_properties`	`boolean`	Include Properties Default: `false`.
`include_technology`	`boolean`	Include Technology Default: `true`.
`include_type_label`	`boolean`	Include Type Label Default: `true`.
`layout`	`enum[dagre \| elk]`	Layout Default: `dagre`.
`legend`	`D2LegendSchema`
`sequence_diagram`	`boolean`	Sequence Diagram Default: `false`.
`theme`	`integer` \| `null`	Theme
`title_near`	`enum[top-left \| top-center \| top-right \| center-left \| center-right \| bottom-left \| bottom-center \| bottom-right]` \| `null`	Title Near Default: `top-center`.

D2StyleSchema¶

D2 style attributes used by D2 render options.

Properties

Field	Type	Description
`animated`	`boolean` \| `null`	Animated
`bold`	`boolean` \| `null`	Bold
`border_radius`	`integer` \| `null`	Border Radius
`double_border`	`boolean` \| `null`	Double Border
`fill`	`string` \| `null`	Fill
`fill_pattern`	`string` \| `null`	Fill Pattern
`font`	`string` \| `null`	Font
`font_color`	`string` \| `null`	Font Color
`font_size`	`integer` \| `null`	Font Size
`italic`	`boolean` \| `null`	Italic
`multiple`	`boolean` \| `null`	Multiple
`opacity`	`number` \| `null`	Opacity
`shadow`	`boolean` \| `null`	Shadow
`stroke`	`string` \| `null`	Stroke
`stroke_dash`	`integer` \| `null`	Stroke Dash
`stroke_width`	`integer` \| `null`	Stroke Width
`text_transform`	`string` \| `null`	Text Transform
`three_d`	`boolean` \| `null`	Three D
`underline`	`boolean` \| `null`	Underline

D2LegendSchema¶

Structured D2 legend render options.

Properties

Field	Type	Description
`items`	`array[D2LegendElementSchema\|D2LegendRelSchema]`	Items
`label`	`string`	Label Default: `Legend`.

D2LegendElementSchema¶

Schema for a D2 legend node sample.

Properties

Field	Type	Description
`type(required)`	`string`	Legend item discriminator. Must be exactly `element`.
`alias`	`string` \| `null`	Optional D2 identifier.
`classes`	`array[string]`	Classes
`icon`	`string` \| `null`	Icon
`label(required)`	`string`	Legend item label.
`shape`	`string` \| `null`	Shape
`style`	`D2StyleSchema`

D2LegendRelSchema¶

Schema for a D2 legend relationship sample.

Properties

Field	Type	Description
`type(required)`	`string`	Legend item discriminator. Must be exactly `relationship`.
`alias`	`string` \| `null`	Optional D2 identifier.
`bidirectional`	`boolean`	Bidirectional Default: `false`.
`classes`	`array[string]`	Classes
`hide_endpoints`	`boolean` \| `null`	Hide Endpoints
`label(required)`	`string`	Legend item label.
`source`	`string` \| `null`	Source
`style`	`D2StyleSchema`
`target`	`string` \| `null`	Target

D2 DeploymentDiagram Spec¶

Properties¶

Elements¶

Boundaries¶

Relationships¶

Definitions¶

D2ContainerDbExtSchema¶

D2ContainerDbSchema¶

D2ContainerExtSchema¶

D2ContainerQueueExtSchema¶

D2ContainerQueueSchema¶

D2ContainerSchema¶

D2DeploymentNodeSchema¶

D2NodeSchema¶

D2PersonExtSchema¶

D2PersonSchema¶

D2RelationshipSchema¶

RelationshipType¶

D2SystemDbExtSchema¶

D2SystemDbSchema¶

D2SystemExtSchema¶

D2SystemQueueExtSchema¶

D2SystemQueueSchema¶

D2SystemSchema¶

DiagramElementPropertiesSchema¶

D2 Render Options¶

D2RenderOptionsSchema¶

D2StyleSchema¶

D2LegendSchema¶

D2LegendElementSchema¶

D2LegendRelSchema¶
